Personal And Professional Weight Scales, Body Composition, And Health Monitoring Equipment - All Body Composition Scales are FDA Cleared

MC-780U plus S Multi-Frequency, Segmental Body Composition Analyzer Travel Package Includes Aluminum Custom Case and Free Printer - 600 lb Capacity

 Thumbnail Thumbnail ThumbnailStorage Compartment ThumbnailLatch Locks Thumbnail Thumbnail
Storage CompartmentLatch Locks
SKU:MC-780U plus S

Includes Custom Aluminum Travel Case With Industrial Rollers and Free Printer

31 Body Composition Measurements

Software Sold Separately

In stock, ships within 24 hours of order, or next business day.

FDA Cleared


Master Card, Visa, American Express, PayPal

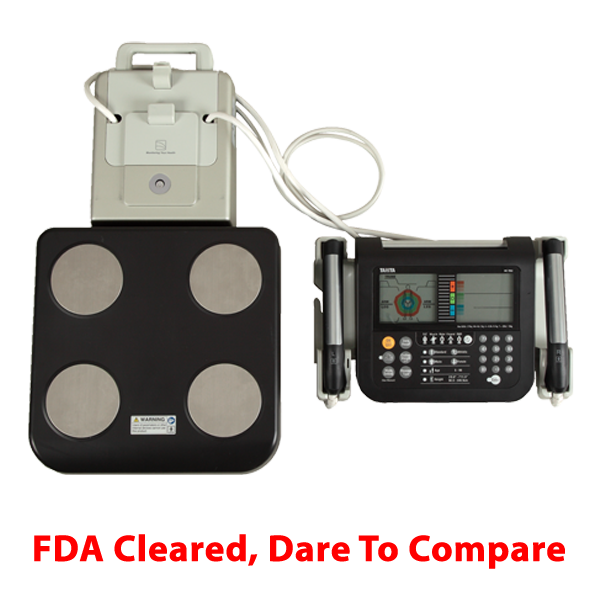

Tanita Professional Multi-Frequency, Segmental Body Composition Travel Analyzer

The MC-780U plus S uses the very latest multi-frequency technology to record a comprehensive range of 31 measurements in just 20 seconds, from segmental fat and muscle mass to basal metabolic rate, visceral fat levels, metabolic age, phase angle and intra/extra cellular body water. Research has shown that using multi-frequency provides essential data on intracellular and extracellular water. This advanced technology shows greater accuracy when calculating body composition measurements. The MC-780U plus S uses a single-point load cell weighing system in the scale platform to guarantee absolute precision and unbelievable longevity (up to 300, 000 uses before calibration).

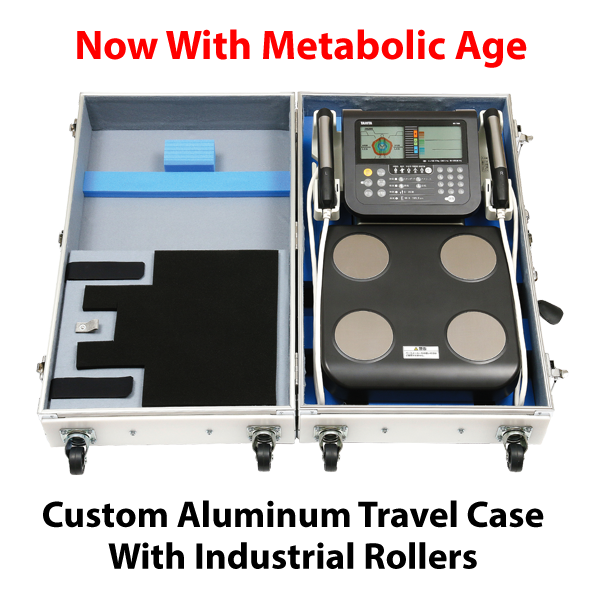

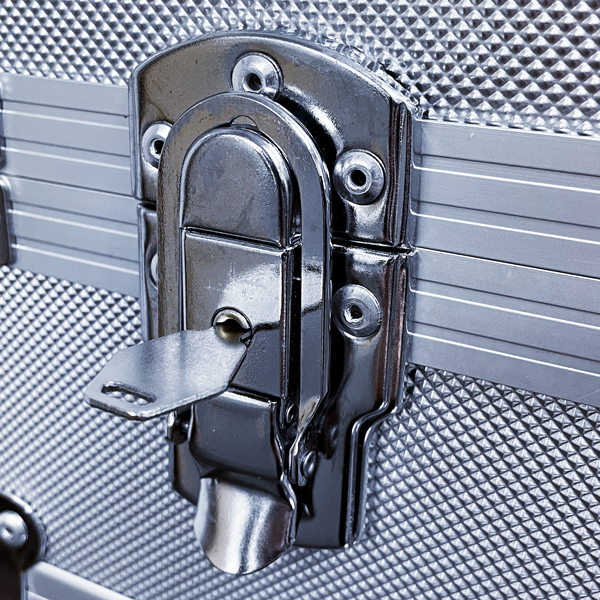

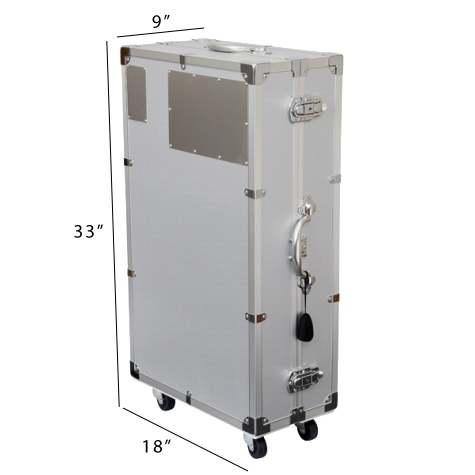

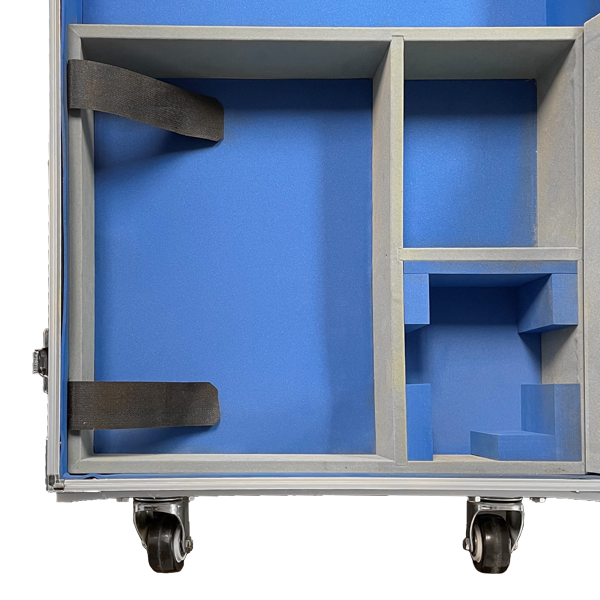

Includes custom travel case with aluminum casing with heavy industry rollers with 360 degree rotation. Aluminum travel case also features a inner storage compartments for MC-780U plus S Analyzer and storage for the cables and cords. Rest assured the travel case has locking latches and comes with keys. Also, includes free printer.

The MC-780U plus S is an FDA cleared 510(k) type 2 medical device, with a weighing capacity of 600 lb (270 kg) and auto calibrates before each and every analysis, ensuring optimum reproducibility of measurements. It uses BIA (Bioelectrical Impedance Analysis) technology, which sends a safe, low-level electrical signal from footplate and hand electrodes through the body. BIA is quick and non-invasive, and one of the most thorough and reliable ways to measure body composition, clinically comparable to DEXA (dual-energy x-ray absorptiometry) and hydrostatic (underwater) weighing.

All results are shown on an easy-to-read, extra-large LCD display console that can be reversed for confidential readings with children, or when very obese clients are using the scale, and a full consultation sheet can be printed automatically for review. A body composition analysis will provide a base to start from and each subsequent reading can be used for long term assessments and progress reports. This will assess the effectiveness of any weight loss or physical activity program. It also demonstrates the importance of looking beyond BMI or weight only that cannot show changes in body composition as muscle increases and fat decreases.

Advanced BIA Technology

Multi-frequency segmental body composition analyzer has 3 frequencies providing 31 highly accurate whole body and segmental measurements.

User Friendly

The interactive console has been designed to guide the user through their personal data input without specialist assistance.

Enhanced Display

The dual LCD display highlights the body composition measurements in a clear, easy to understand format.

Multiple Outputs

The built-in SD card facility allows data to be automatically collected and downloaded at convenience. USB and RS-232 connectors for simple integration with EMR systems.

Database Management

The client ID feature allows continuous measurement data to be collected for each client. The feature also allows large data sets to be collated for research studies effortlessly.

Simple Printer Interface

Any Epson printer can be connected directly to the MC-780U plus S to enable consultation sheets to be printed immediately after a measurement has been taken.

Modular and Portable

Modular 3-part system for easy installation, maintenance and transport.

Software Compatibility

The MC-780U plus S is compatible with Tanita Health Ware® Software (sold seperate) allowing full database management and progress reports.

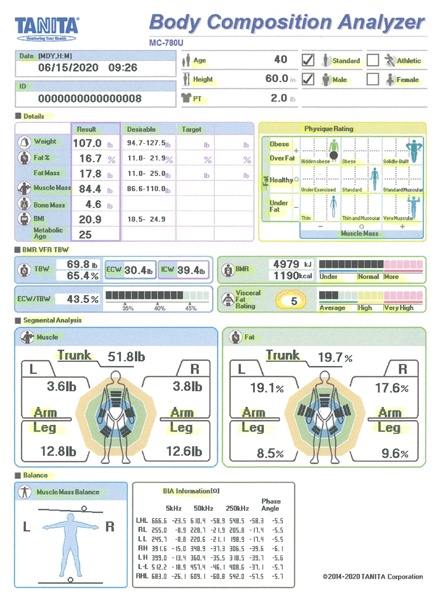

Sample Printout from a printer


Key Features

  • Includes custom case with aluminum casing, heavy industry rollers with 360 degree rotation, inner storage compartment for cables and cords, and locking latches with keys and free printer
  • FDA ClearedMulti-Frequency segmental body composition analyzer - providing 31 highly accurate whole body and segmental measurements
  • Easy-to-use interactive console guides the user through the personal data input without specialist assistance
  • Body composition results are shown on an easy-to-read, extra-large LCD dual display
  • The full consultation sheet can be directly printed using any Epson printer
  • EMR ready with high-speed digital outputs and optional Bluetooth wireless
  • Compatible with Tanita Health Ware® Software allowing database management and progress reports (see below)


 Health Ware Printout

Sample Printout From Tanita Health Ware® Software (Sold Separate)

 MC-780U plus  Specification  Available
 Capacity  Pounds  600
 Kilograms  270
 Increment  Pounds  0.2
 Kilograms   0.1
 BIA Technology  Multi-Frequency  Yes
 Warranty* Traditional 3 Years With Additional Year When Bought on   4 years
 Full Body   Measurements  Weight  Yes
 Body Mass Index (BMI)  Yes
 Body Fat %  Yes
 Body Fat Mass  Yes
 Muscle Mass  Yes
 Physique Rating  Yes
 Body Water %  Yes
 Total Body Water Mass (TBW)  Yes
 Extra Cellular Water (ECW)  Yes
 Intra Cellular Water (ICW)  Yes
 ECW / TBW Ratio  Yes
 Basal Metabolic Rate (BMR)  Yes
 Metabolic Age
 Bone Mass  Yes
 Visceral Fat Rating  Yes
 Reactance /   Resistance / Phase   Angle  Yes
 Segmental   Measurement  Body Fat %   Yes
 Muscle Mass  Yes
 Impedance  Yes
 Data Analysis  Weight   Yes
 BMI  Yes
 Body Fat %  Yes
 Segmental Fat %  Yes
 Fat Mass  Yes
 Muscle Mass  Yes
 Segmental Muscle  Yes
 BMR  Yes
 Visceral Fat Level  Yes
 Radio Wireless  Bluetooth   Yes
 Additional   Functions  Target (Goal) Weight   Yes
 Target (Goal) Body Fat %  Yes
 Target (Goal) Fat Mass  Yes
 Desirable Weight  Yes
 Desirable Body Fat  Yes
 Desirable Fat Mass  Yes
 Desirable BMI  Yes
 Muscle Mass Balance  Yes
 Unique   Features  Kids Mode   Yes
 kg-only Option  Yes
 Printing  External Printer   Yes
 Outputs  RS-232   Yes
 USB  Yes
 Printer  Yes
 SD Card  Yes
 Power  AC   Yes
 Unit Weight  Kilograms   15.5
 Pounds  34.2
 Platform Size  Metric   35.8cm x   35.8cm
 Imperial  14.1in x   14.1in

Optional Accessories:

Tanita Health Ware Software

Tanita Health Ware® Software (Laptop NOT Included)

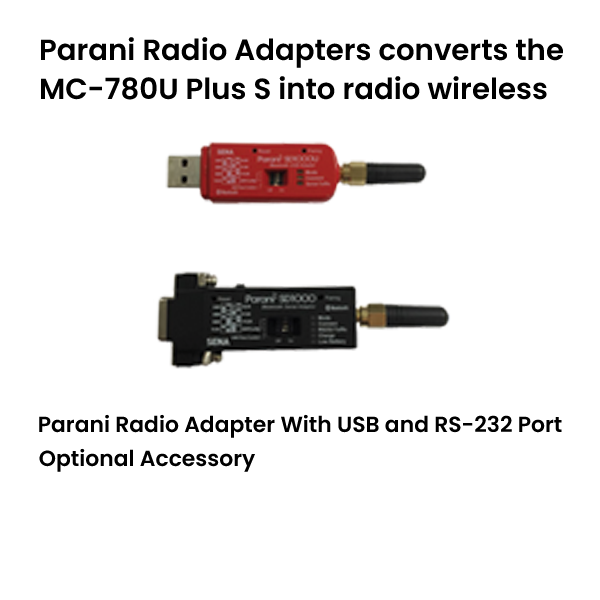

Bluetooth Radio Wireless Adapter
Wireless Adapter

Height Rod, HR 200

HR-200 Height Rod

USB Cable Type A Type B

USB Cable
